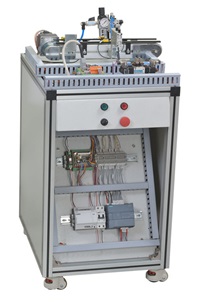

Modular Product System Buffer Station Package
Tersedia
Buffer Station ensures steady flow of components to the process station by allowing one component at a time for processing. It can store upto 5 work pieces at a time and if the count has exceeded 5, it communicates with the downstream stations to STOP the processing activities until the count reaches 5. Buffer Station consists of the following
FRCLM module
Conveyor module
Valve module
I/O Interface Module
Profile Table work bench
PLC control
Control Console
Buffer station is capable of buffering up to 5 jobs. Buffering process should be controlled by a separator using up stream and down stream light barriers sensors. Retro reflective sensor detects the inserted job and keeps tag on the nos. of jobs buffered precisely while the separator module passes the job to the next station if the transfer point is free. The buffer station waits for the signal from the down stream station & as soon as it receives the signal is transferred. The end position of all pneumatic actuators is detected by using Magnetic sensors.
The station consists of anodized profile plate, filter regulator and lubricator unit with pressure gauge, on/off valve quick push connections and couplings mounted with suitable mountings for easy assembly and disassembly.
FRCLM module
Conveyor module
Valve module
I/O Interface Module
Profile Table work bench
PLC control
Control Console
Buffer station is capable of buffering up to 5 jobs. Buffering process should be controlled by a separator using up stream and down stream light barriers sensors. Retro reflective sensor detects the inserted job and keeps tag on the nos. of jobs buffered precisely while the separator module passes the job to the next station if the transfer point is free. The buffer station waits for the signal from the down stream station & as soon as it receives the signal is transferred. The end position of all pneumatic actuators is detected by using Magnetic sensors.
The station consists of anodized profile plate, filter regulator and lubricator unit with pressure gauge, on/off valve quick push connections and couplings mounted with suitable mountings for easy assembly and disassembly.
INFO HARGA
Silahkan menghubungi kontak kami untuk mendapatkan informasi harga produk ini.
