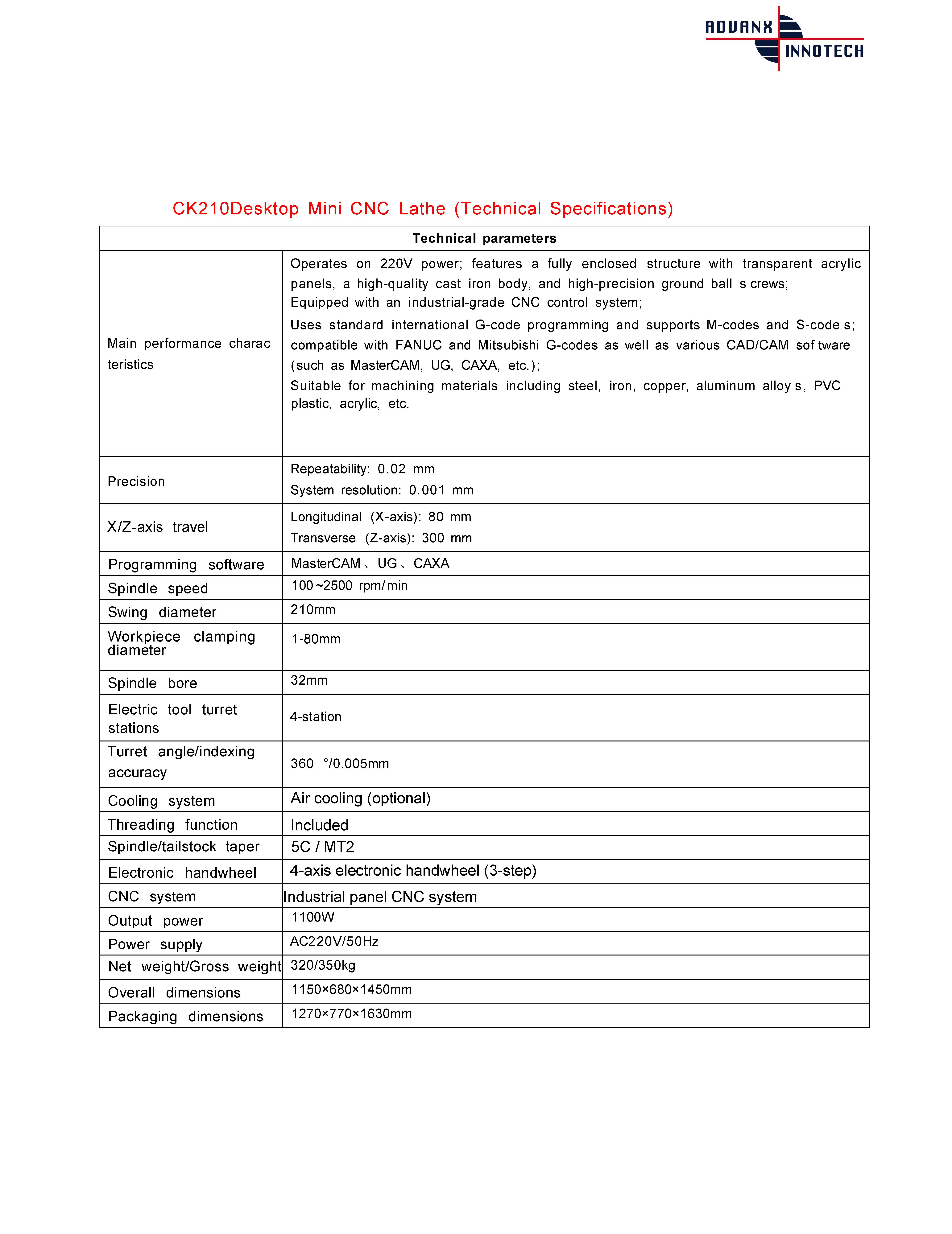

Main performance characteristics :

Operates on 220V power ; features a fully enclosed structure with transparent acrylic

panels, a high-quality cast iron body, and high-precision ground ball s crews ;

Equipped with an industrial-grade CNC control system ;

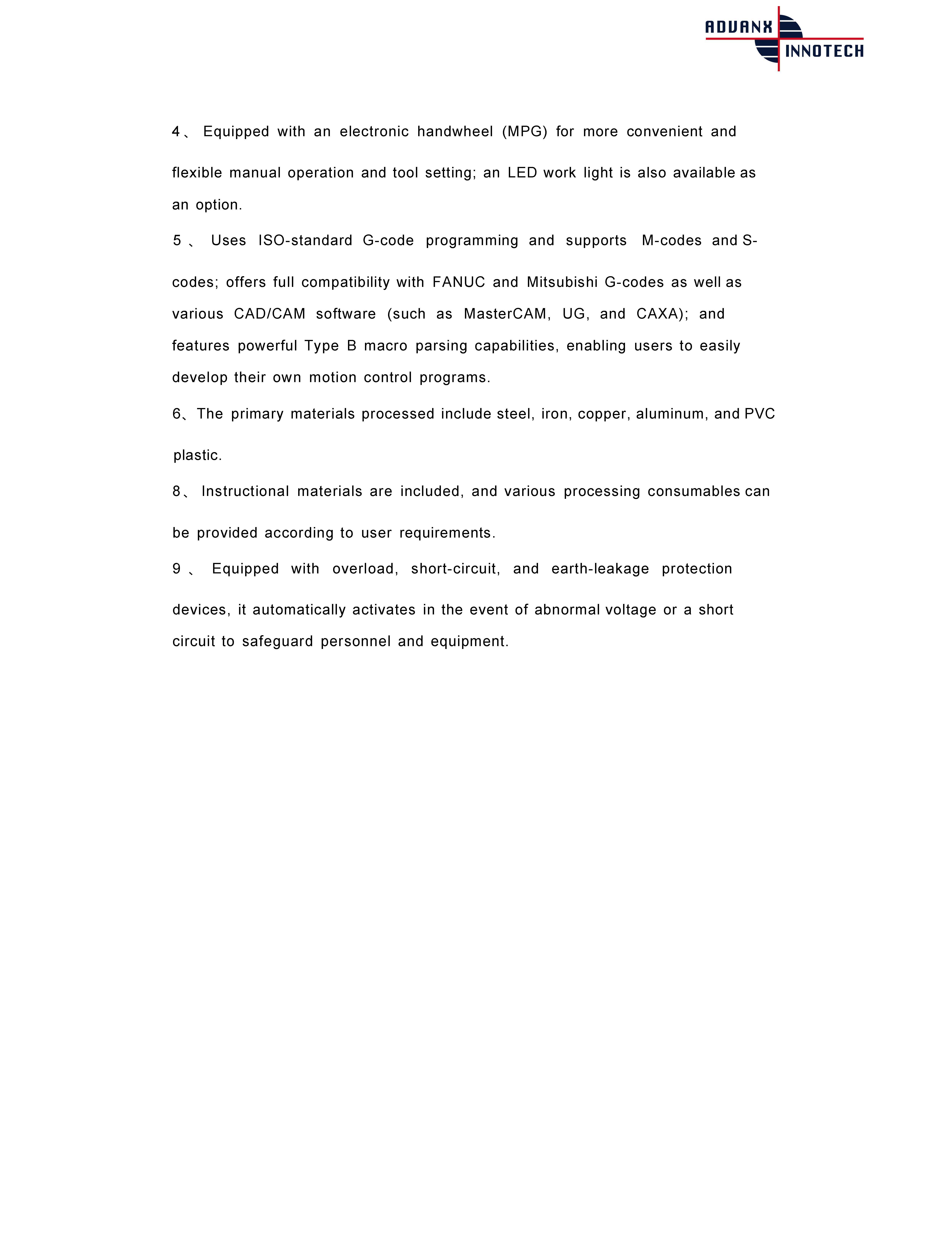

Uses standard international G-code programming and supports M-codes and S-code s ;

compatible with FANUC and Mitsubishi G-codes as well as various CAD/CAM sof tware

( such as MasterCAM, UG, CAXA, etc. ) ;

Suitable for machining materials including steel, iron, copper, aluminum alloy s , PVC

plastic, acrylic, etc.

Precision : Repeatability  0.02 mm , System resolution 0.001 mm

X/Z-axis travel : Longitudinal (X-axis) 80 mm, Transverse (Z-axis) 300 mm

Programming software : MasterCAM , UG , CAXA

Spindle speed : 100 ~2500 rpm/ min

Swing diameter : 210mm

Workpiece clamping diameter : 1-80mm

Spindle bore : 32mm

Electric tool turret stations : 4-station

Turret angle/indexing accuracy : 360 °/0.005mm

Cooling system : Air cooling (optional)

Threading function : Included

Spindle/tailstock taper : 5C / MT2

Electronic handwheel : 4-axis electronic handwheel (3-step)

CNC system : Industrial panel CNC system

Output power : 1100W

Power supply : AC220V/50Hz

Net weight/Gross weight : 320/350kg

Overall dimensions : 1150× 680× 1450mm

Packaging dimensions : 1270× 770× 1630mm

Harga : Rp. 380.000.000,00
